Dial in the frame geometry for your riding style and terrain, then let it rip.

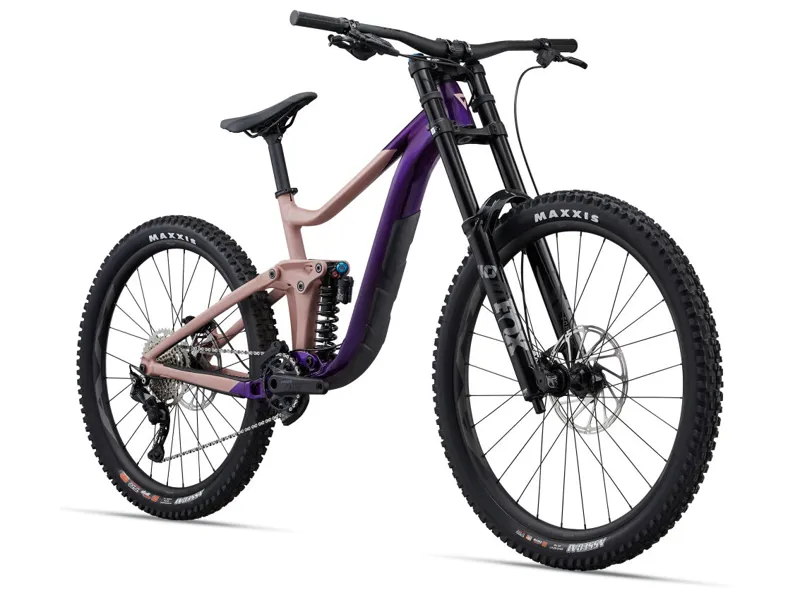

This new shapeshifter enduro bike delivers confidence and control on the rowdiest terrain. Its mixed wheel size, 29-inch front and 27.5 rear, blends stability and speed with agility that pops.

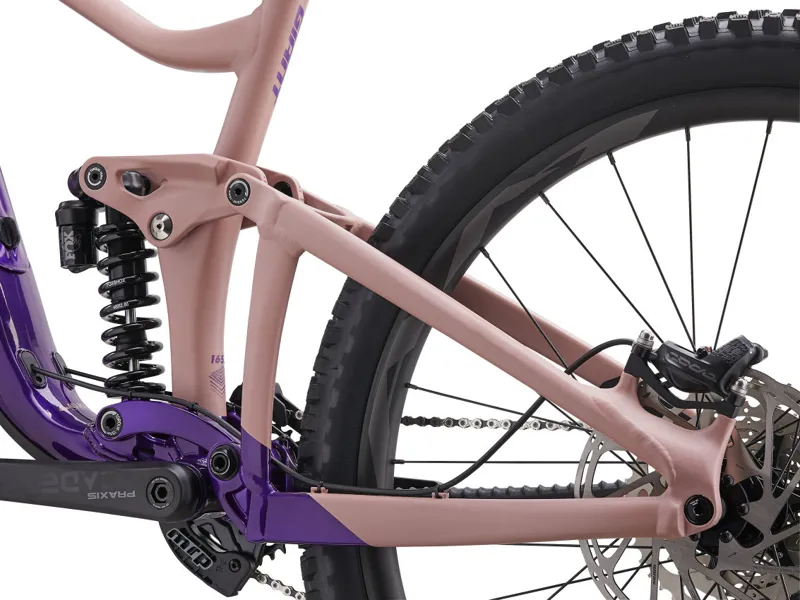

The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 190mm travel fork. The trunnion mount rear shock has a longer stroke (65mm over 60mm on the previous generation) while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.
New flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 63.1 or 63.5-degree head angle and corresponding 77.9 or 78.3-degree seat tube angle, resulting in a 25 or 19mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and manoeuvrability to help riders rail corners, pop over features and show off their style.
Key Features & Benefits:
- Trail Ready:ALUXX SL-Grade Aluminum frame, a dropper seatpost and wide, grippy tires keep you planted and help you tackle technical trails.
- Balanced Agility:Obstacle-eating 29-inch front and agile 27.5 inch rear wheel offer smooth handling and roll easily over small roots and rocks.
- Custom Tuned Suspension:The 165 mm of Maestro Suspension was developed and tested under the extreme conditions of Enduro World Series races.
Full Specification:

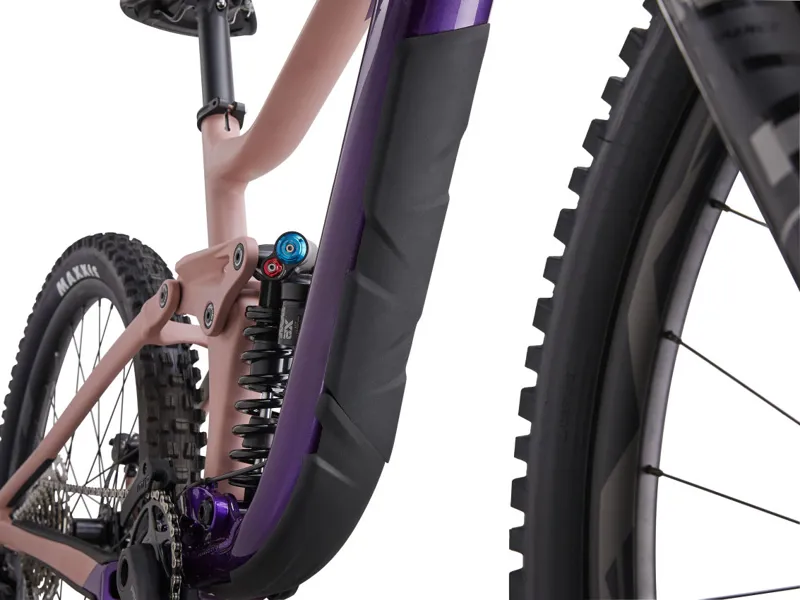

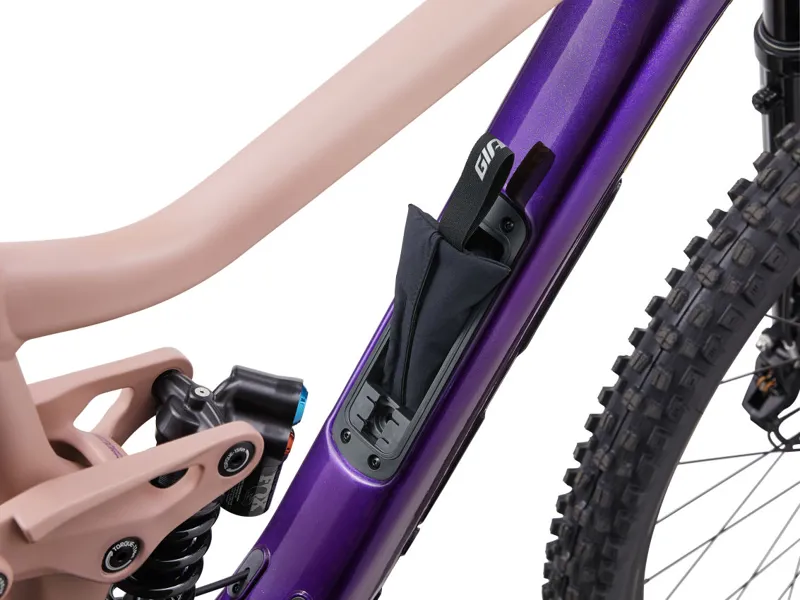

- Frame:ALUXX SL-Grade Aluminum front and rear triangles, Advanced Forged Composite rocker link, 165mm Maestro suspension, OverDrive (1 1/8″ – 1 1/2″), BB89.5, UDH, 12x148mm thru-axle, 27.5-inch rear wheel dedicated, flip chip – Maestro 3, integrated downtube storage, 2.5″ max tyre size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection

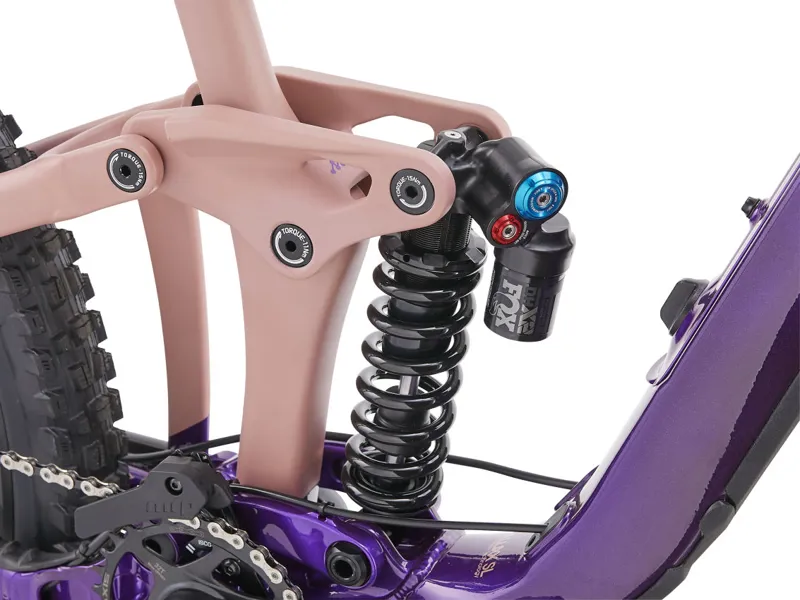

- Rear Shock:Fox DHX2 Performance Elite, 205/65 M:400lbs, L:450lbs
- Fork:Fox 40 Performance, GRIP damper, 190mm, 20×110
- Number of Gears:10
- Gear Shifters:Shimano Deore SL-M4100, 1×10
- Chainset:Praxis Cadet M24, 32t, 165mm, 55mm chainline
- Chainrings:32 teeth

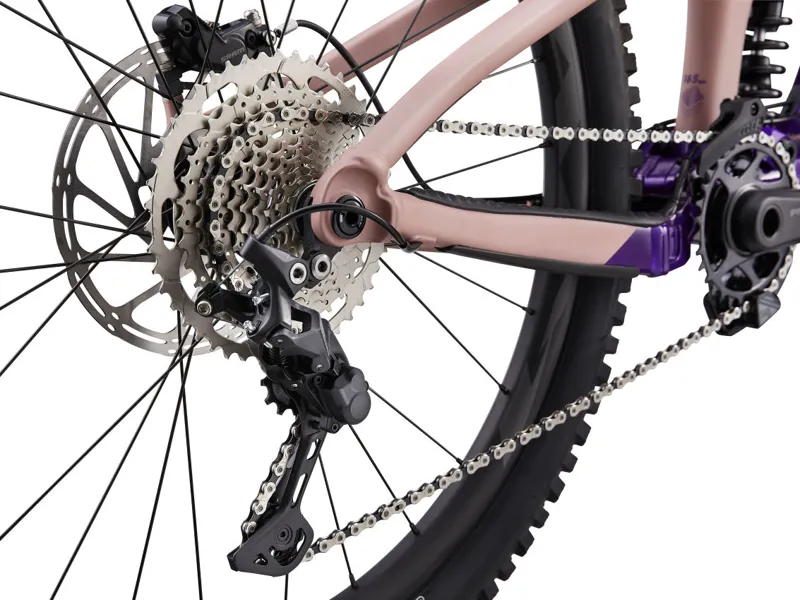

- Rear Cassette:Shimano Deore M4100, 11x-46T
- Chain:KMC X10, w/ Missing Link
- Front Derailleur:N/A
- Rear Derailleur:Shimano Deore RD-M5120
- Bottom Bracket:Praxis, press fit
- Pedals:Not supplied
- Rims:[F] Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy [R] Giant AM 27.5, ETRTO: 30-584, tubeless ready (TL tape and valve included), alloy
- Front Hub:Alloy, sealed Giant, cartridge bearing, 6-bolt
- Rear Hub:Giant, cartridge bearing, 6-bolt
- Front Tyre:Maxxis Assegai 29×2.5 WT, 3C MaxxTerra, EXO+, TR
- Rear Tyre:Maxxis Minion DHR II 27.5×2.5 WT, 3C MaxxTerra, DD, TR tubeless
- Brakes:SRAM Code R, hydraulic, CenterLine rotors [F]220mm, [R]203mm
- Handlebars:Giant Contact SL TR35, 800x35mm, 20mm rise
- Handlebar Grips:Giant Tactal Pro Single S:120mm, M:120mm, L:130mm
- Stem:TruVativ Descendant Direct Mount 35, 50mm
- Saddle:Giant Romero
- Seatpost:Giant Contact, 30.9mm, 400mm
- Accessories:F
- Weight:N/A
