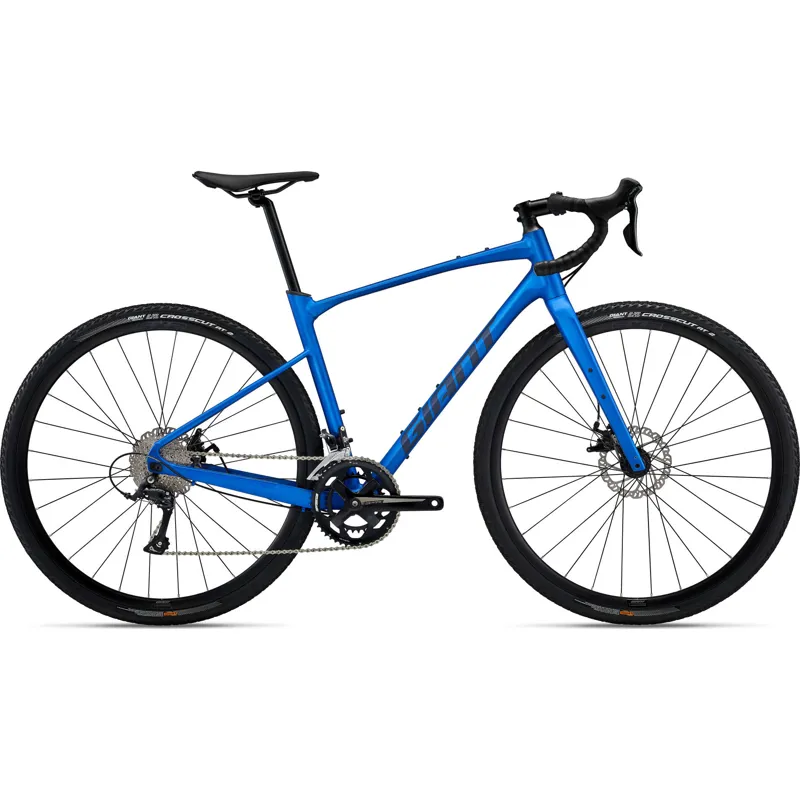

Giant Revolt 2 Gravel Bike 2023 In Sapphire

Ride roads, gravel or dirt with this all-new aluminium all-rounder.

A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

The all-new Revolt features a lightweight ALUXX aluminum frame with updated gravel geometry including a longer reach and lower bottom bracket for added stability. A flip chip on the rear dropout adjusts wheelbase and tire clearance, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a 30.9mm round or dropper post. The frame is integrated for disc brakes and it has clearance for larger tires up to 53mm.

Key Features & Benefits:

• Confident handling:Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
• Tuned compliance:New frame features thinner, dropped seatstays to absorb road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
• Adaptable to the terrain:A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Full Specification:

• Frame:ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
• Fork:Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Gear Shifters:Shimano Sora, 2×9
• Chainset:FSA Vero Pro, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
• Chainrings:31/48 teeth
• Rear Cassette:Shimano HG400, 11×34
• Chain:KMC X9 with Missing Link
• Front Derailleur:Shimano Sora
• Rear Derailleur:Shimano Sora Long cage
• Bottom Bracket:FSA BSA cartridge
• Pedals:Not Included
• Rims:GiantS-X2 Disc wheelset
• Front Hub:GiantS-X2 Disc wheelset
• Rear Hub:GiantS-X2 Disc wheelset
• Front Tyre:Giant CrossCut AT 2, 700x38c, tubeless
• Rear Tyre:Giant CrossCut AT 2, 700x38c, tubeless
• Brakes:Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
• Handlebars:Giant Contact XR Ergo-Control, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
• Handlebar Tape:Velo cork tape with gel
• Stem:GiantContact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
• Saddle:Giant Approach
• Seatpost:GiantD-Fuse, Alloy, 14mm offset
• Accessories:Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 42mm max tyre size in “short” flip chip position
• Weight:N/A
