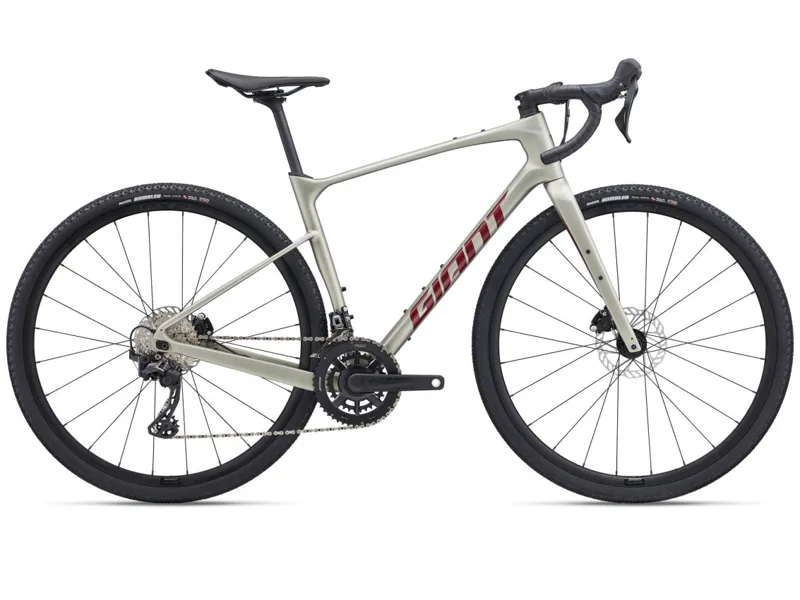

Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts.
Key Features & Benefits:
- New Frame:Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
- Tuned Compliance:Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
- All-rounder Efficiency:A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maxim
Full Specification:
- Frame:Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
- Fork:Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- Number of Gears:24
- Gear Shifters:Shimano GRX RX-610, 2×12
- Chainset:FSA Omega Modular AGX+, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Chainrings:32/48teeth
- Rear Cassette:Shimano CS-HG710, 12-speed, 11×36
- Chain:KMC X12L-1
- Front Derailleur:Shimano GRX RX-820
- Rear Derailleur:Shimano GRX RX-820
- Bottom Bracket:FSA BB-AL86, press fit
- Pedals:Not supplied:
- Rims:Giant P-X2 wheelset
- Front Hub:Giant P-X2 wheelset
- Rear Hub:Giant P-X2 wheelset
- Front Tyre:Maxxis Rambler, 700x40c, tubeless
- Rear Tyre:Maxxis Rambler, 700x40c, tubeless
- Brakes:Shimano GRX RX-410 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
- Handlebars:Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
- Stem:Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Saddle:Giant Approach
- Seatpost:Giant D-Fuse, alloy, 14mm offset
- Accessories:Factory tubeless set up, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
- Weight:N/A
