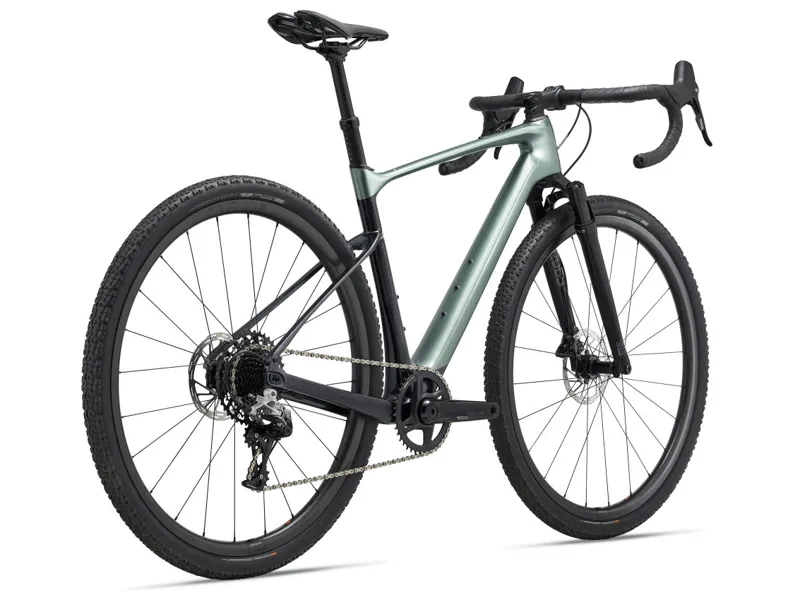

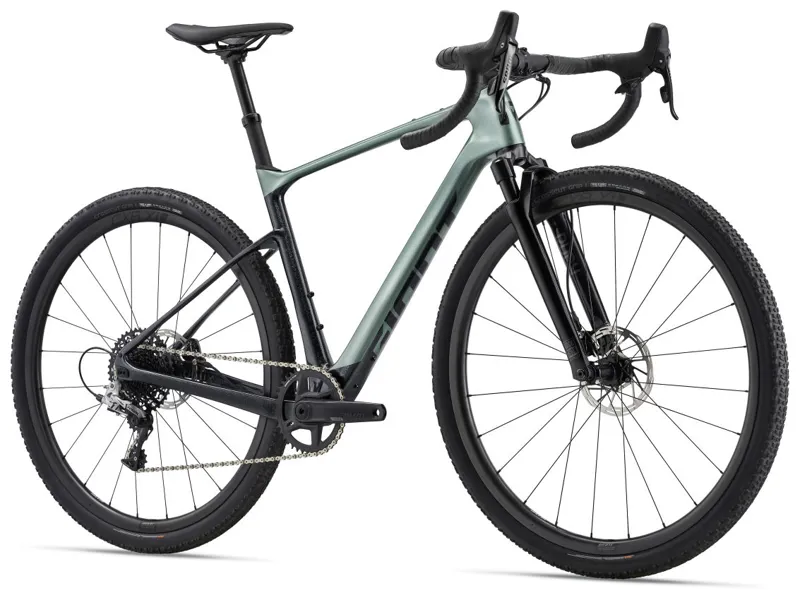

Giant Revolt X Advanced Pro 2 Gravel Bike 2023 In Misty Forest

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This new composite gravel machine features a suspension fork and engineered compliance to help you float through all of it with speed and control.

The Advanced composite frameset of the Revolt X Advanced Pro 2 is designed with suspension-optimized geometry and paired with a 40mm travel fork, delivering a smooth, controlled ride quality on rugged gravel and dirt. A flip chip on the rear dropout lets you adjust the wheelbase and increase tire clearance up to 53mm. You can use the included dropper post, switch to a proprietary Giant D-Fuse seatpost for added compliance, or use a standard 30.9mm round seatpost. A Contact SL XR D-Fuse handlebar further minimizes fatigue by absorbing shocks and vibrations.

Key Features & Benefits:

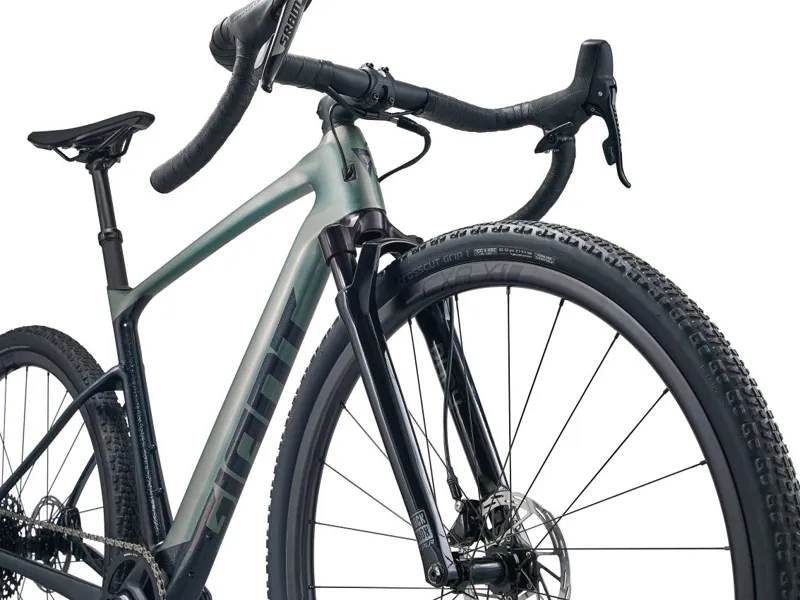

• Smooth control:Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.

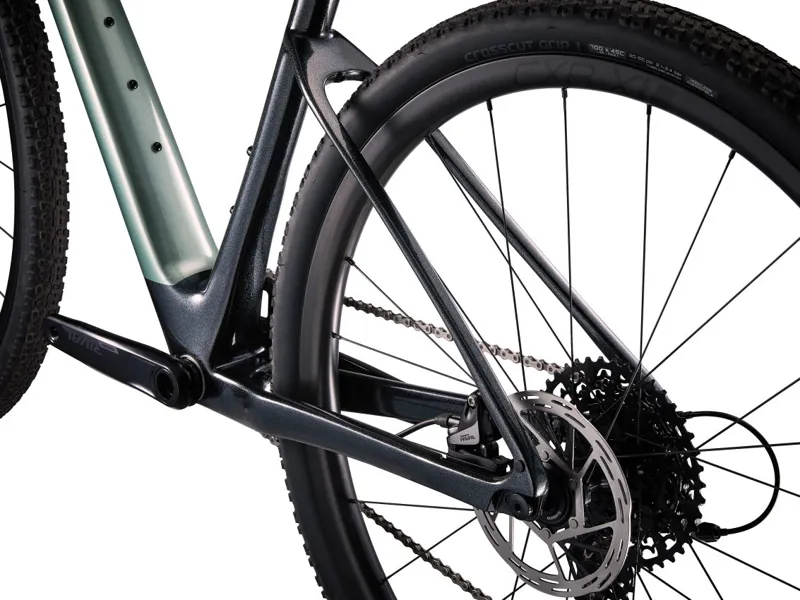

• Tuned Compliance:Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations.

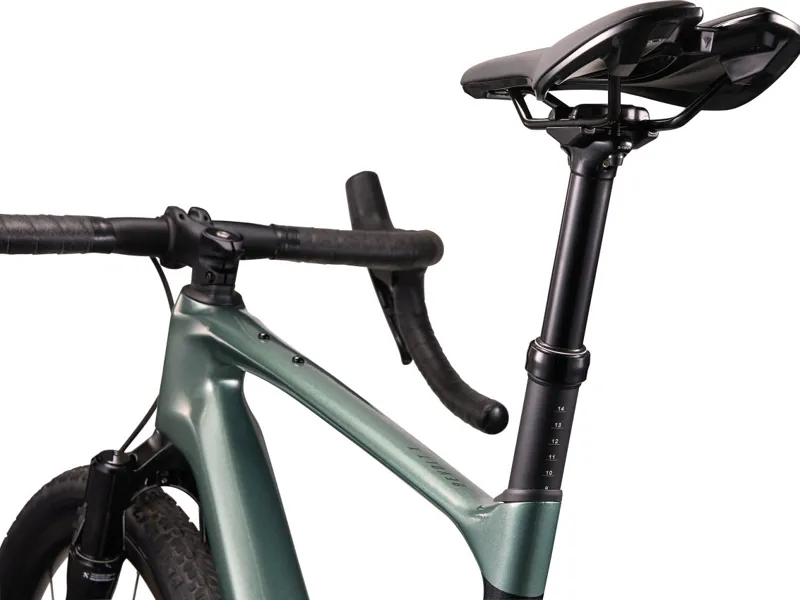

• Dropper post:Use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.

Full Specification:

• Frame:Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
• Fork:RockShoxRudy XPLR, 40mm, cartridge damper 12x100mm thru-axle
• Gear Shifters:SRAM Rival 1, 1×11
• Chainset:SRAM Rival D1 DUB, 40T
• Chainrings:40 teeth
• Rear Cassette:SRAM Rival, 11-speed, 11×42
• Chain:SRAM PC-1130
• Front Derailleur:N/A
• Rear Derailleur:SRAM Rival 1
• Bottom Bracket:SRAM DUB, threaded
• Pedals:Not Included
• Rims:Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
• Front Hub:Giant AR alloy, CenterLock, 12mm thru-axle
• Rear Hub:Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
• Front Tyre:Giant CrossCut Grip 1, 700x45c, tubeless
• Rear Tyre:Giant CrossCut Grip 1, 700x45c, tubeless
• Brakes:SRAM Rival 1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm

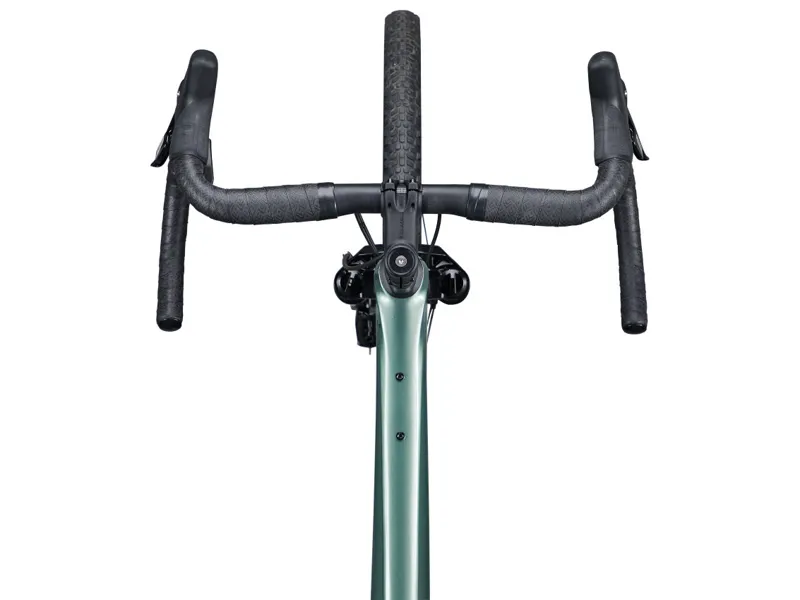

• Handlebars:Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
• Stem:Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
• Saddle:Giant Approach SL
• Seatpost:Postmodern, dropper, 30.9mm with 25mm of suspension
• Accessories:Tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position
• Weight:N/A
