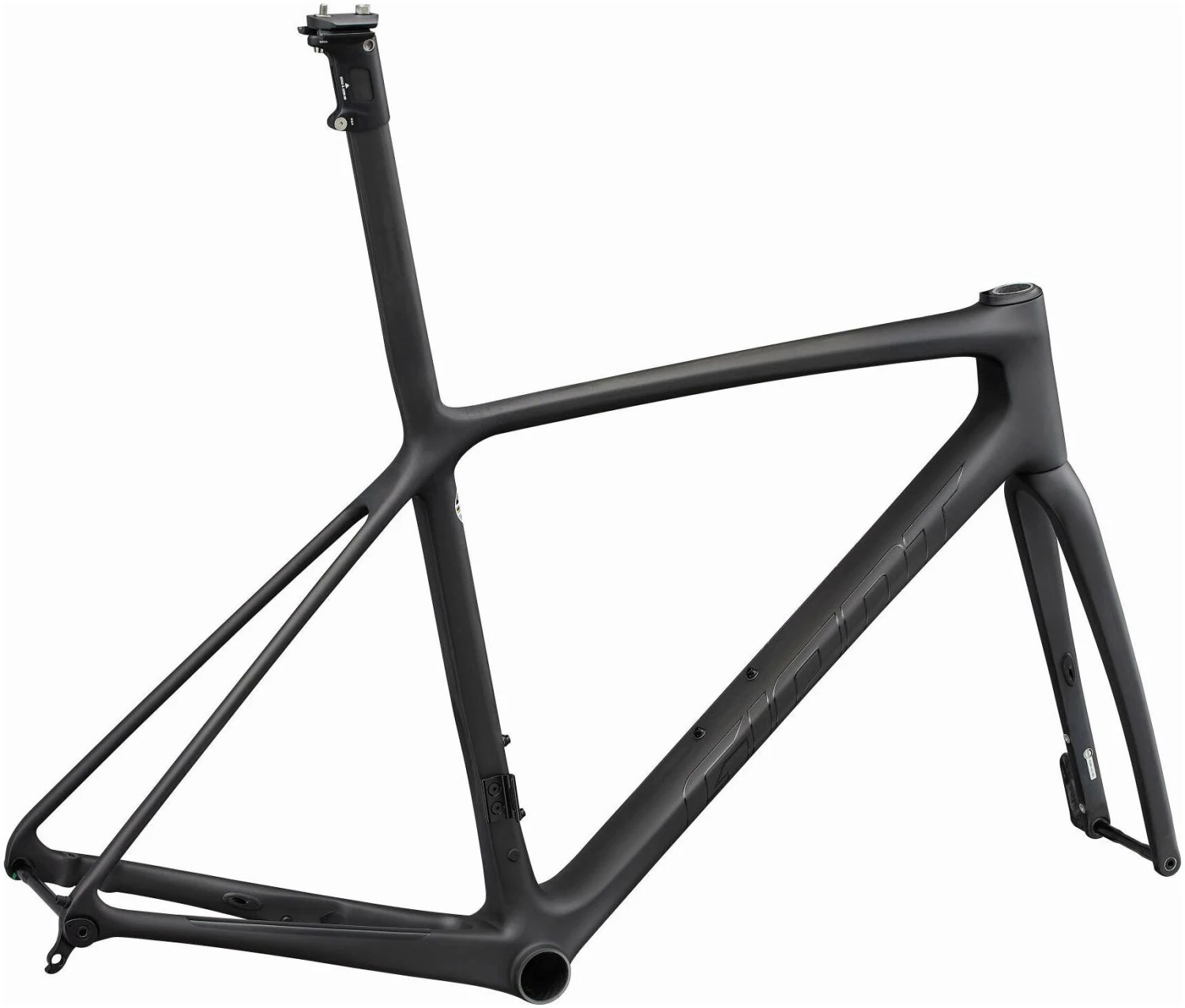

Giant TCR Advanced SL Disc 2022 Frameset

From high alpine climbs to sprints and solo rides, this is the road bike frame of choice for ultralight weight, super-stiff pedaling transmission and aero efficiency.

Key Performance Factors

Class-leading Efficiency

With the highest pedalling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.

Advanced Aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total Control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.

Technologies

Advanced SL Composite Technology

Professional Grade raw carbon fiber is woven in our composite factory to produce our lightest, stiffest and highest quality frames. This is the technology used by Giant’s pro racers in almost every cycling discipline.

Overdrive 2

The most advanced steerer tube technology in today’s Giant bikes. Designed to offer unprecedented front-end steering performance, the system’s oversized headset bearings (1 1/2″ lower, 1 1/4″ upper) and tapered steerer tube work in harmony to provide supreme steering stiffness.

Compact Road Design

Introduced by Giant with the professional Team ONCE in the 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.

Tubeless System

Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.

Megadrive

A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.

Powercore

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

Ridesense Ready

This frame comes prepared to accept the Giant RideSense sensor and accompanying hardware.

Specifications

• Frame: Advanced SL-Grade Composite, Integrated Seatpost, Disc
• Fork: Advanced SL-Grade Composite, Full-Composite OverDrive 2 Steerer, Disc
• Seatpost: Advanced SL-Grade Composite, Integrated Design, -5/+15mm Offset
