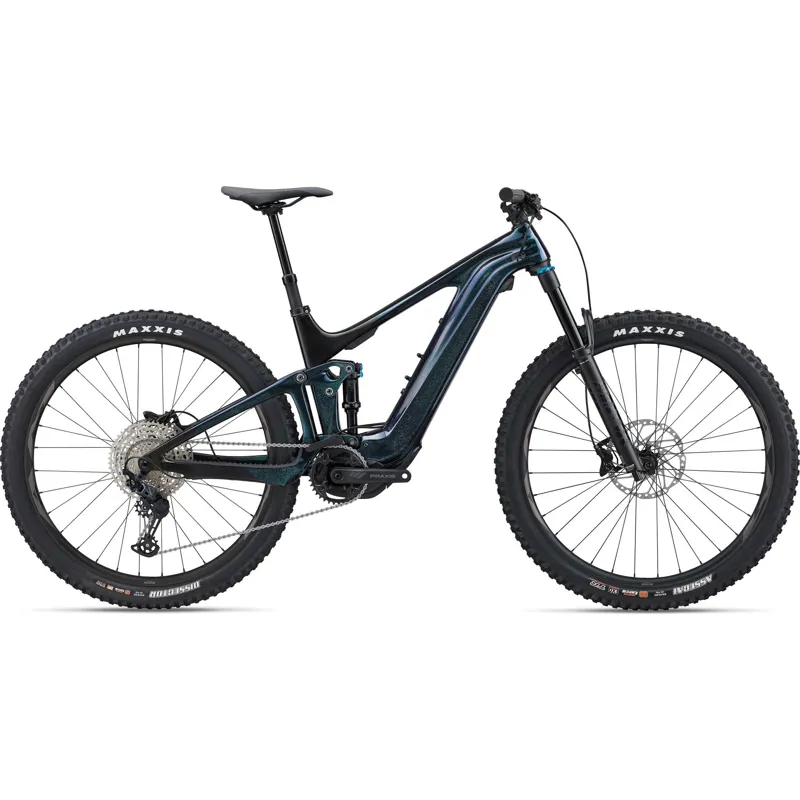

A new breed of trail bike that blends power, performance and flat-out fun.
With its lightweight composite frame, plush suspension and new motor technology, you’ll never want the ride to end.
Powerful and responsive – New SyncDrive Pro motor with 85Nm of torque creates powerful pedaling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Adaptable to the terrain – New flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
Clean cockpit – The new RideControl Go top-tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
Key Features & Benefits:
- Adjustable frame geometry:New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
- 29er confidence and control:29-inch wheels optimized to roll over technical terrain with balance and stability, giving you more momentum on tricky climbs and confidence to fly on fast singletrack descents. Added clearance for up to 2.5-inch tyres.
- Progressive trail design:Maestro rear suspension features a trunnion mount shock with a longer stroke and smoother feel. With 140mm of full rear-wheel travel (and 150mm up front), it features an Advanced Forged Composite upper rocker arm for increased stiffness and strength plus lower overall frame weight.
Full Specification:
- Frame:Advanced-Grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
- Rear Shock:FoxDPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185×52.5mm Trunnion mount, custom tuned
- Fork:Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR, e-optimized
- Number of Gears:12
- Motor:SyncDrive Pro, 85Nm, powered by Yamaha
- Controller:RideControl Ergo 3, grip integrated, RideControl GO, frame integrated LED displayANT+ Wireless display compatible
- Battery:EnergyPak Smart 625, EnergyPak Plus, 250Wh range extender compatible
- Charger:EnergyPak Smart 6A charger
- Gear Shifters:Shimano Deore XT, 12-speed
- Chainset:Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor = 168, XS/S:160, M/L:165, XL:170)
- Chainrings:36T
- Rear Cassette:Shimano HG-M6100, 10-51T, 12-speed
- Chain:KMC e.12 Turbo, EcoProteq, e-bike optimized
- Front Derailleur:NA
- Rear Derailleur:Shimano Deore SLX, 12-speed, Shadow+
- Bottom Bracket:
- Pedals:Not included
- Rims:Giant AM 29″, Tubeless ready, 30mm inner width
- Front Hub:ShimanoMT410, Boost, Center-Lock, 110×15
- Rear Hub:Shimano MT410, Boost, Center-Lock, 148x12mm Micro-Spline Drive Body Thru-axle
- Front Tyre:Maxxis Assegai 29×2.6″ foldable, Tubeless, EXO, 3c MaxxTerra
- Rear Tyre:Maxxis Dissector 29×2.6″ Foldable, Tubeless, EXO+, 120tpi 3C [R]
- Brakes:Shimano Deore, BR-M6120, 4-piston, hydraulic disc, 203mm
- Handlebars:Giant Contact 35 Trail, 35x780mm
- Handlebar Grips:GiantTactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
- Stem:Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
- Saddle:Giant Romero
- Seatpost:Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170)
- Accessories:Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied
- Weight:N/A
- Notes:
